A Fortune 500 semiconductor company came to EyeCloud AI with a demanding brief: a next-generation intelligent vision platform in which five cameras had to behave like one — every exposure locked to the same clock, every frame carrying a trustworthy timestamp, with multi-microphone audio kept in lock-step. EyeCloud AI was selected as the full-stack ODM partner and carried the product from the first ID sketch to verified, measurement-backed hardware.

This article tells that story with the evidence: how five image sensors were synchronized in hardware, how synchronization was proven with oscilloscope traces, firmware logs and a stopwatch, where the platform runs on Intel® Movidius™ and SigmaStar® silicon, how the same architecture extends to multi-camera stitching, and how our certification and calibration processes de-risk your path to mass production.

The success case, start to finish

What the client needed

The application — a collaborative intelligent-vision platform in the smart-space / multi-sensor perception class — required frame-level simultaneity across all five channels, sustained for hours, plus microphone audio that could be correlated with the video timeline, in a fanless soundbar-style enclosure built around standard USB 3.0 connectivity.

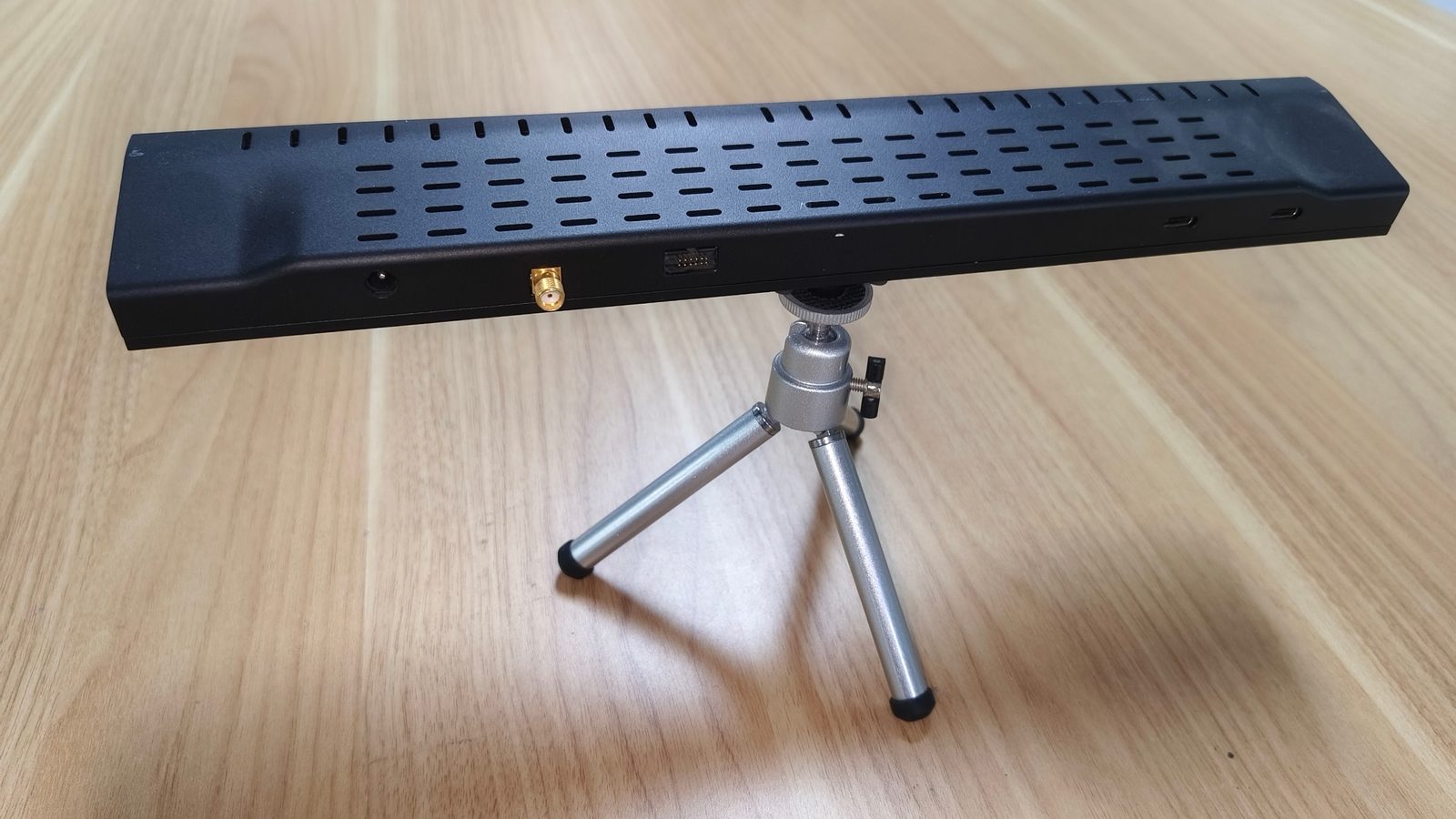

What we shipped

Hardware platforms we master: Intel Movidius & SigmaStar

Platform choice determines cost, bandwidth and where the intelligence lives. This program runs on Intel Movidius vision processors; the same team also builds cost-optimized camera products on SigmaStar SoCs. Both platform tracks are standing capabilities:

Synchronization, proven with instruments — not adjectives

Proof 1: the sync pulse on an oscilloscope

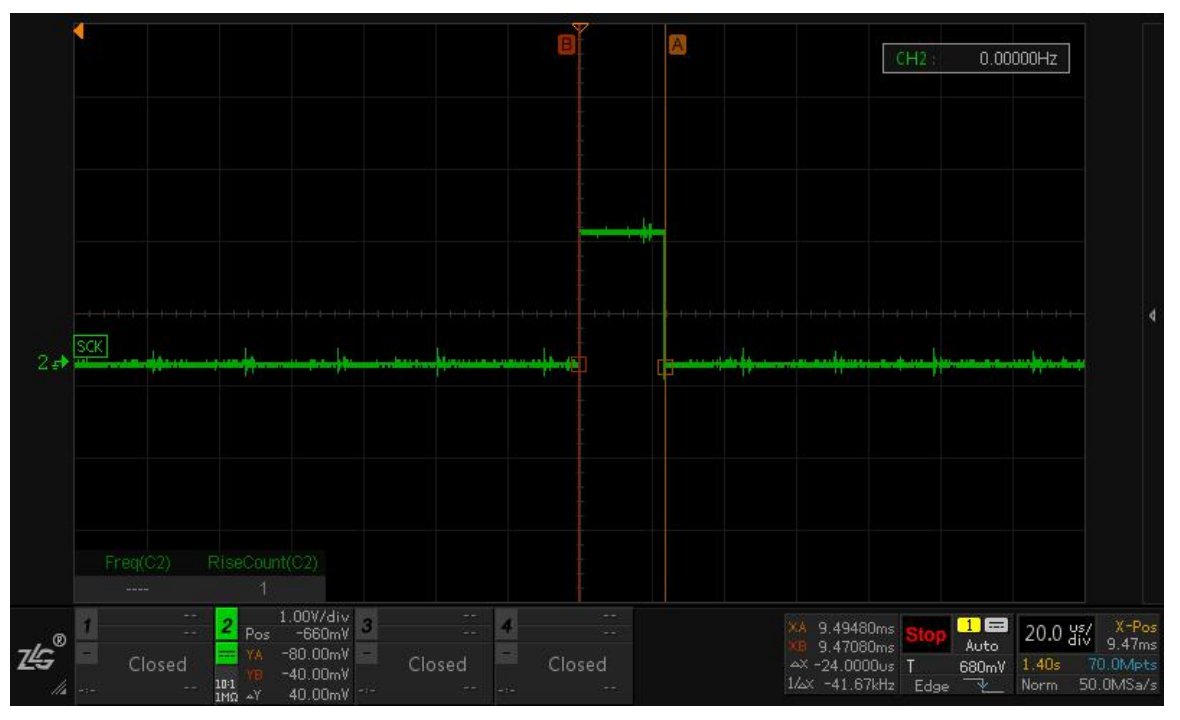

Every sensor receives a shared 30 Hz PWM synchronization pulse with a pulse width of about 23 µs — sized to the sensor’s line period so it can gate the exposure cleanly. Because the trigger is distributed before the sensor pipeline, all five chips open and close their shutters on the same clock edge, every frame, with no software in the loop.

Proof 2: firmware logs — five cameras, identical timestamps

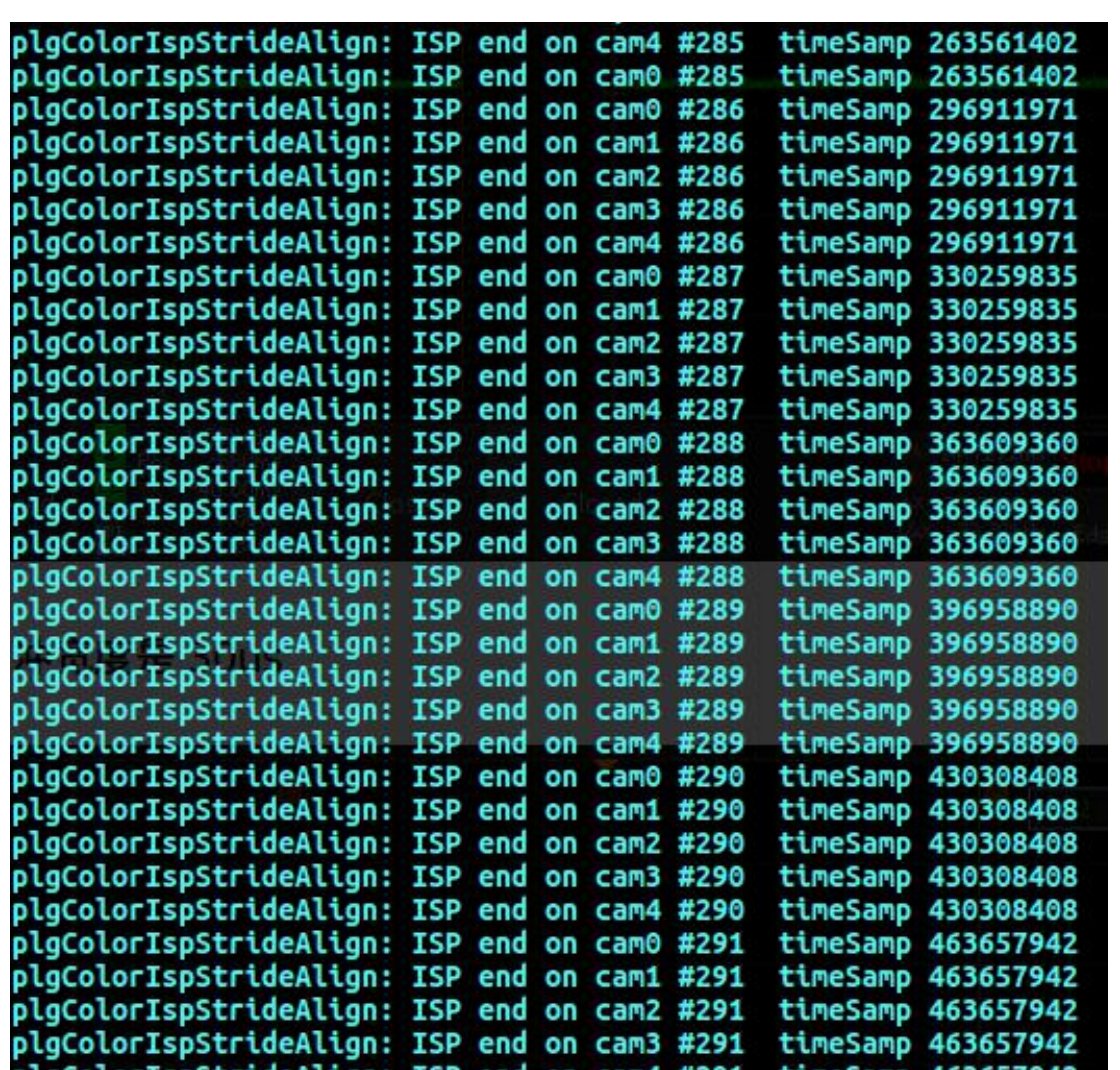

Frame timestamps are captured at MIPI receive — as close to the sensor as possible — and carried through the pipeline as a 64-bit counter. In the log below, frames #285–#291 land with identical timestamps on cam0 through cam4, frame after frame. A timestamp attached later (in a driver or application) would measure scheduling, not capture time, and would quietly break alignment under CPU load.

Proof 3: the stopwatch test

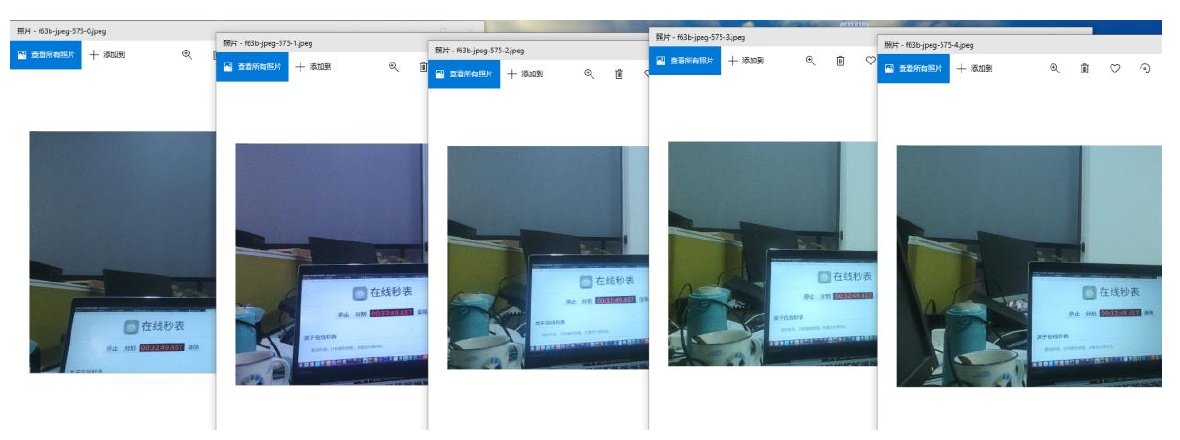

Finally, the human-checkable proof: all five cameras filmed a running stopwatch. Every saved image set shows the same elapsed time across all five streams — five pictures, five cameras, one moment. Frame-integrity audits under continuous capture measured a MIPI-level drop rate of about 1 frame in 60,000 (99.998%) at the 2304×1272 @ 30 fps working mode, and throughput profiling fixed the honest ceiling of the platform (5×ISP + 5×NV12 + 5×MJPEG q95 ≈ 6.1 / 5.5 / 6.5 ms per frame per channel).

Video and audio on one clock

Multi-microphone audio is often an afterthought that breaks A/V correlation. Here it was designed into the same timestamp domain: microphone packets are encoded to AAC on the device and delivered with their own 64-bit timestamps through the same time-aligned API as the frames. Because audio and video share one counter, the host can correlate them directly — the foundation for beamforming, speaker tracking and AV analytics that must trust the relative timing of sound and image. And because AAC coding uses negligible DDR bandwidth, our measurements showed adding audio cost nothing to the video pipeline’s throughput.

Where synchronized multi-camera systems earn their keep

• AI & embodied-AI data collection — egocentric and multi-sensor capture rigs, where five frame-locked video streams plus multi-microphone audio on one timestamp domain are exactly the dataset quality bar.
• Video collaboration & smart spaces — multi-view conference capture, speaker detection and room analytics from one soundbar-shaped device (exactly this program’s form factor).
• Panoramic & multi-view stitching — 180°/360° coverage from lens arrays; synchronization and calibration are the preconditions (see next section).
• Depth, stereo & 3D reconstruction — frame-locked baselines without which disparity maps tear and point clouds ghost.
• Robotics & AMR perception — obstacle detection and visual SLAM that assume every sensor saw the same instant.
• Industrial inspection & sports/broadcast rigs — multi-angle capture where frames must be cut and merged without temporal offset.

Multi-camera streaming: from five streams to one image

Synchronized capture is the entry ticket; stitching turns overlapping views into one seamless image. The pipeline is deterministic — and each stage is a capability we build and calibrate:

Synced capture ➞ Intrinsic calibration ➞ Extrinsic calibration ➞ Reprojection / LUT ➞ Seam & blend ➞ Multi-view output

The three make-or-break ingredients

• Hardware sync (solved above). Even 1 ms of temporal offset across a stitched seam produces double edges and ghosting on anything that moves; the 30 Hz frame-locked trigger removes the error at the source.
• Geometry. Per-module intrinsics (focal length, principal point, distortion) from ChArUco targets, then extrinsics — rotation and translation between cameras — recovered on our calibration rig, a stage we deliver on multi-view programs; baked into reprojection LUTs so the runtime pipeline stays cheap.
• Photometric consistency. Per-module exposure/WB normalization and luminance-matched blending so the seam disappears in color as well as in geometry — verified on Imatest charts so color error (ΔC) is a number, not a debate.

The calibration & image-quality lab behind every unit

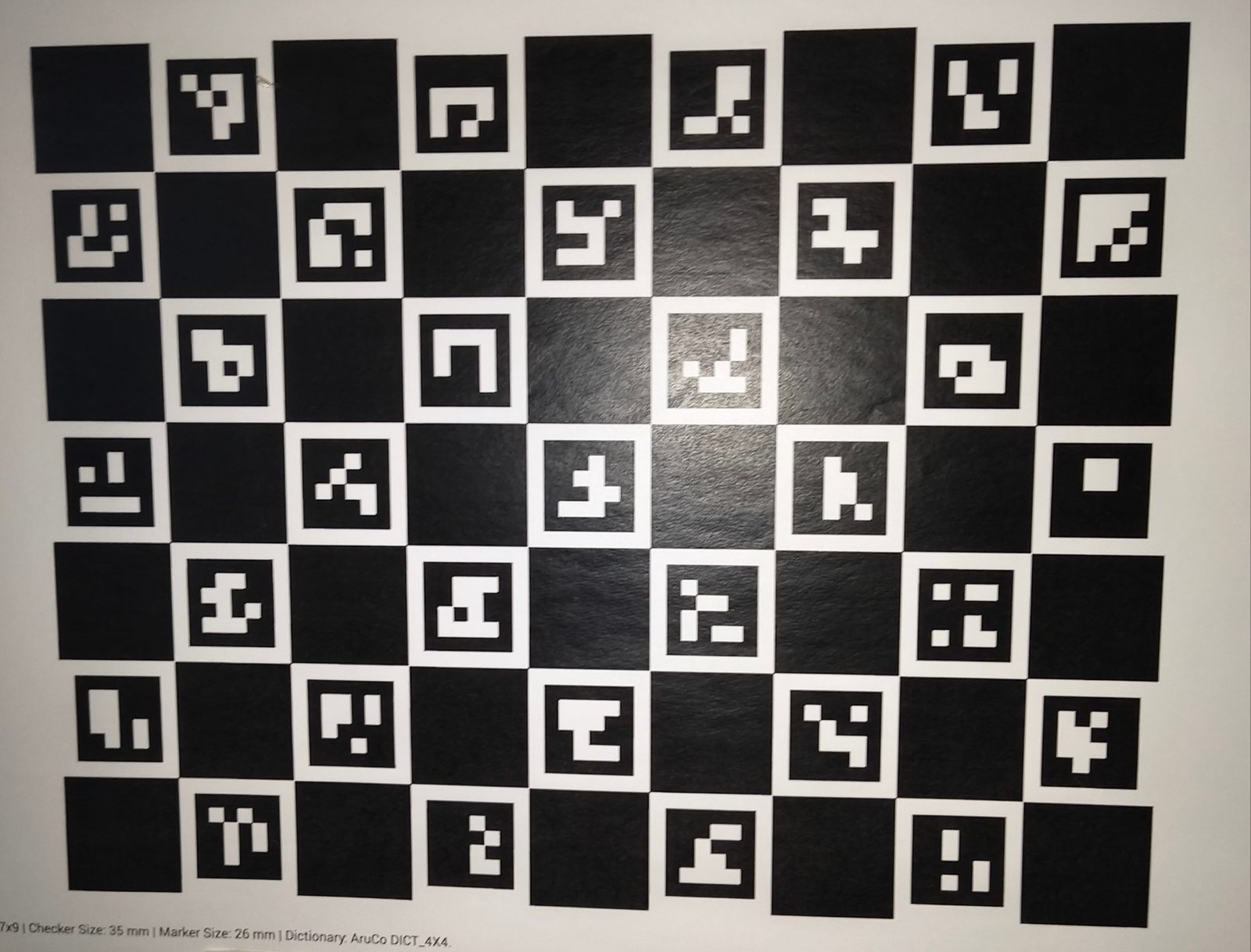

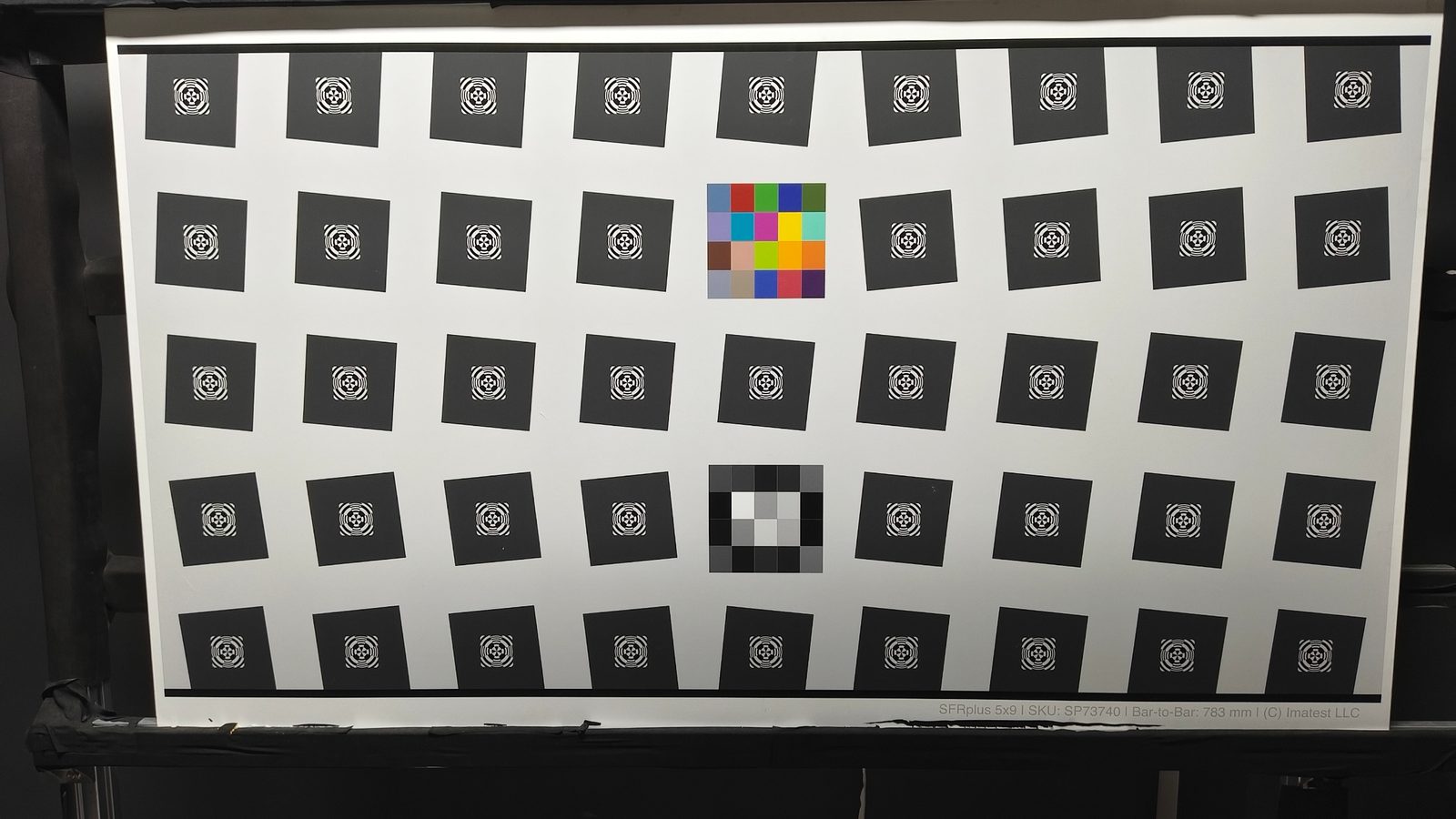

Synchronization aligns frames in time; calibration aligns cameras in space and color. Every module we ship passes intrinsic calibration on printed ChArUco targets (7×9 grid, 35 mm squares, 26 mm ArUco markers) — chessboard precision with marker robustness for automated multi-camera capture — and image quality is verified on an Imatest SFRplus 5×9 chart so “looks good” becomes a number with a pass band.

Certification: engineered to pass, not hoping to pass

A product isn’t finished when it works; it’s finished when it certifies. Our hardware is designed against the target standard from day one — creepage and clearance, enclosure flammability, EMC-conscious stack-ups and connector grounding are design inputs, not post-mortems. This program’s scope ended at system verification; certification is not a promise on paper — it is a stage our team runs routinely on other customer products, through accredited partner labs, with pre-compliance done in-house to minimize loopbacks.

The CE / FCC standards matrix we design against

The UL process, step by step (typical)

01 Scope & standard (UL 62368-1) ➞ 02 Safety design review ➞ 03 Pre-compliance tests ➞ 04 Lab submission ➞ 05 First article & factory audit ➞ 06 FUS surveillance

1. Scope & standard selection — UL 62368-1 (AV/ICT equipment) for US and/or cUL Canada; decide listing vs. recognition for the power subsystem.
2. Safety design review — critical components list (PSU, connectors, insulation systems — selected from UL Yellow Card materials, see below), creepage/clearance checks, enclosure flammability class, energy-source classification per 62368-1.
3. In-house pre-compliance — dielectric withstand, ground continuity/bond, temperature rise, touch-current and abnormal-condition tests before anything ships to a lab.
4. Formal submission — construction package and type testing at the accredited lab; findings closed with engineering changes, report issued.
5. First production inspection — production-line test spec (hipot, ground bond, functional) defined and audited at the factory.
6. Follow-Up Services — periodic surveillance, mark control (UL/cUL), annual audits keep the listing alive in mass production.

Typical timeline: 10–16 weeks from lab submission to certificate, largely determined by how clean the pre-compliance phase is — which is exactly the phase we run ourselves.

UL Yellow Card materials: certification starts in the BOM

Long before a lab sees the product, certification is decided in the bill of materials. When our engineers select enclosure resins, insulation sheet, wire, labels and connectors, the first filter is whether the material carries a UL Yellow Card — the certificate page of a UL-Recognized material (plastic materials are filed under the QMFZ2 category), verifiable by file number in UL Product iQ. A yellow card states, at each rated thickness, how the material behaves in fire and under electrical stress:

Because these constructions arrive at the lab pre-evaluated, the end-product UL 62368-1 review starts from known data instead of open questions — fewer findings, fewer engineering loopbacks, and a cleaner pre-compliance phase (which is exactly what keeps the 8–14 week window above realistic).

Honest scope note — and the full chain behind it

We keep project claims strictly scoped. The table below separates what this program delivered from capabilities proven on other EyeCloud AI customer programs — offered as the standard continuation of this flow:

* “Proven on other programs” rows are not claimed as part of this engagement — they are capabilities our team has exercised and shipped on other customer products, and are available as the standard continuation of this flow.

Frequently asked questions

How do you synchronize multiple cameras in one device?

Give every sensor the same start signal and timestamp as early as possible: a 30 Hz PWM sync pulse drives all five exposures in hardware; timestamps are taken at MIPI receive and carried as 64-bit counters; the host SDK delivers the channels as time-aligned batches. Software-only alignment after capture cannot undo oscillator drift and USB scheduling jitter.

What synchronization accuracy did the five-camera system achieve?

All five channels were frame-locked at 30 fps: firmware logs show identical per-frame timestamps across cam0–cam4, and a wall-clock (stopwatch) verification read identical time on all five outputs. Frame-integrity audits measured a MIPI-level drop rate of about 1 frame in 60,000 at 2304×1272 @ 30 fps.

Are video and audio synchronized too?

Yes. Microphone packets are encoded to AAC on the device and timestamped on the same 64-bit counter as the video frames, so the host can correlate sound and image directly — the prerequisite for beamforming and speaker tracking. Measurements showed adding AAC had no measurable impact on video throughput.

What does multi-camera stitching require beyond the cameras themselves?

Three things: hardware frame sync (to stop ghosts at the seams), per-camera intrinsics plus inter-camera extrinsics (to build reprojection LUTs), and photometric normalization (to hide the seam in color). We produce all three as calibration assets, then implement stitching either on the host PC or on-device depending on your product’s cost and deployment model.

What is the difference between CE and FCC certification?

They are different markets’ regimes, not interchangeable stamps. CE is the EU declaration covering EMC (EN 55032/55035), radio (RED), safety (EN 62368-1) and RoHS; FCC is the US regime focused on emissions (Part 15) and radio certification. Many products pursue both from one pre-compliance campaign since the EMC test items overlap heavily.

How long does UL certification take?

Typically 10–16 weeks from formal lab submission to certificate for a product in this class, plus design-review time before that. The single biggest schedule factor is how many findings the lab raises — which is why the pre-compliance phase (dielectric, temperature rise, abnormal tests) is run in our own lab first.

Can one host PC run several of these five-camera devices?

Yes. Each device enumerates with a unique USB PID, devices connect through standard USB 3.0 hubs, and the SDK exposes each unit as an independent camera group with its own synchronized batch stream — ten or more synchronized channels on one PC while preserving per-device time alignment.

What does a full-chain camera ODM program include?

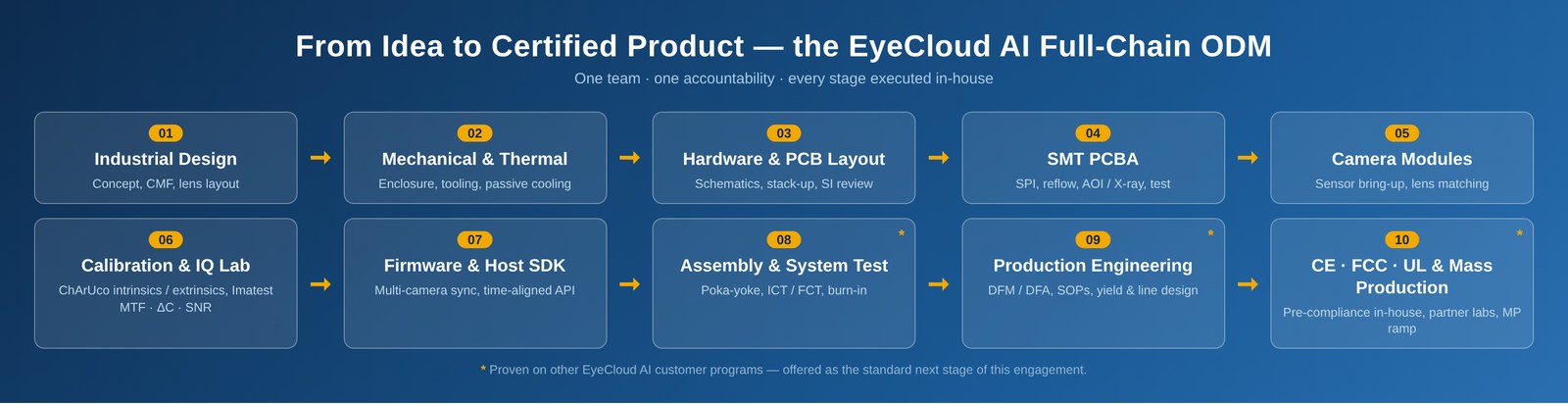

Industrial design; mechanical and thermal engineering; hardware schematic and PCB layout; SMT PCBA; camera module build; intrinsic and extrinsic calibration; firmware and host SDK; assembly and system test; production process design; and CE/FCC/UL certification support. Every stage of that chain has been exercised on real customer programs, and EyeCloud AI provides it in-house, in any scope from a single stage to turnkey.

What is a UL Yellow Card and why does it matter for a camera ODM project?

A UL Yellow Card is the official certificate page of a UL-Recognized material or component — plastic materials are filed under the QMFZ2 category, each with a file number verifiable in UL Product iQ. It records the material’s UL 94 flammability class, RTI, CTI and glow-wire ratings at specific thicknesses. Specifying yellow-card materials for enclosures, insulation parts and critical connectors means the end-product safety review starts from pre-evaluated construction — fewer findings and a faster path to the UL listing.
