1. Overview

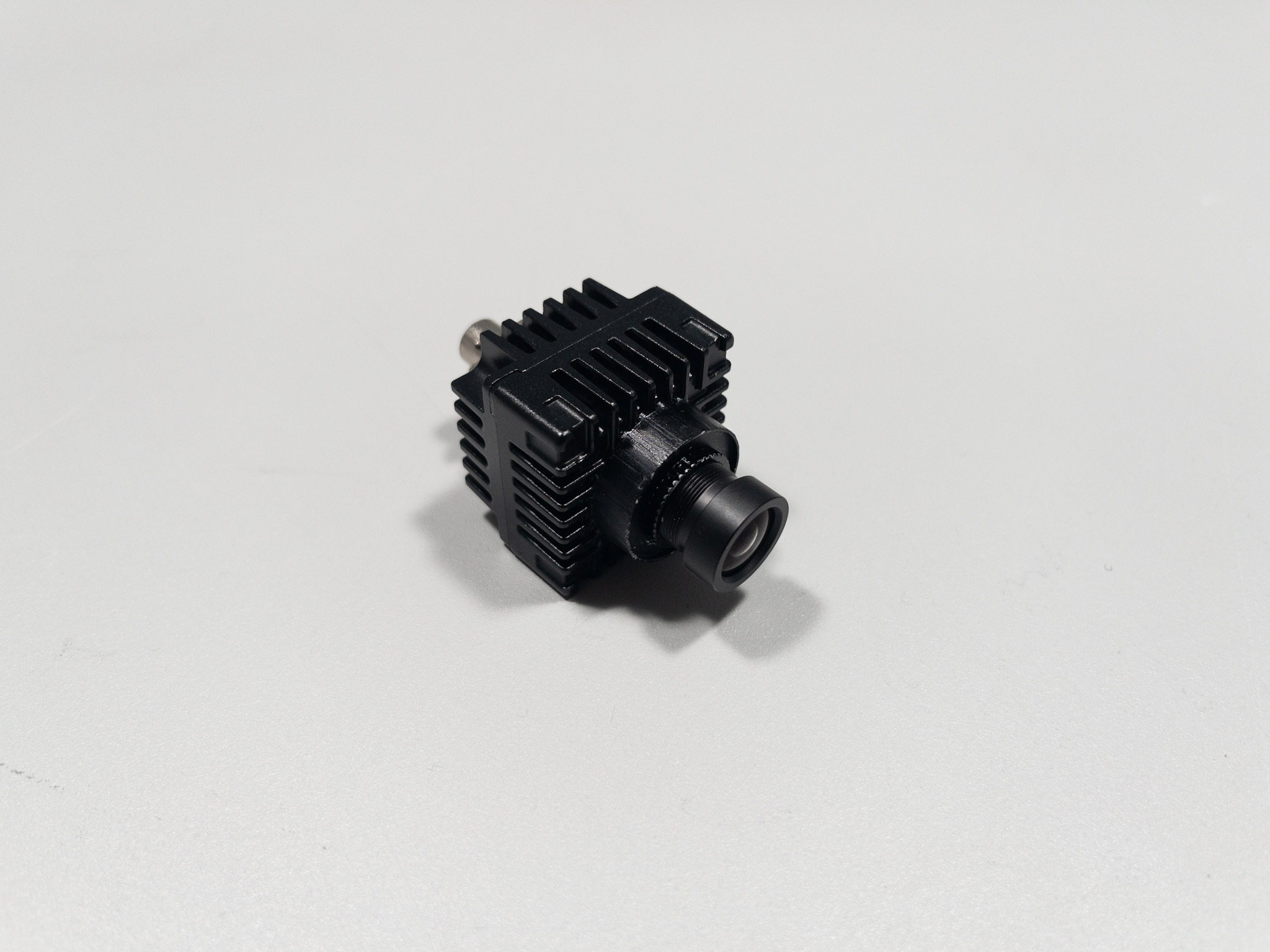

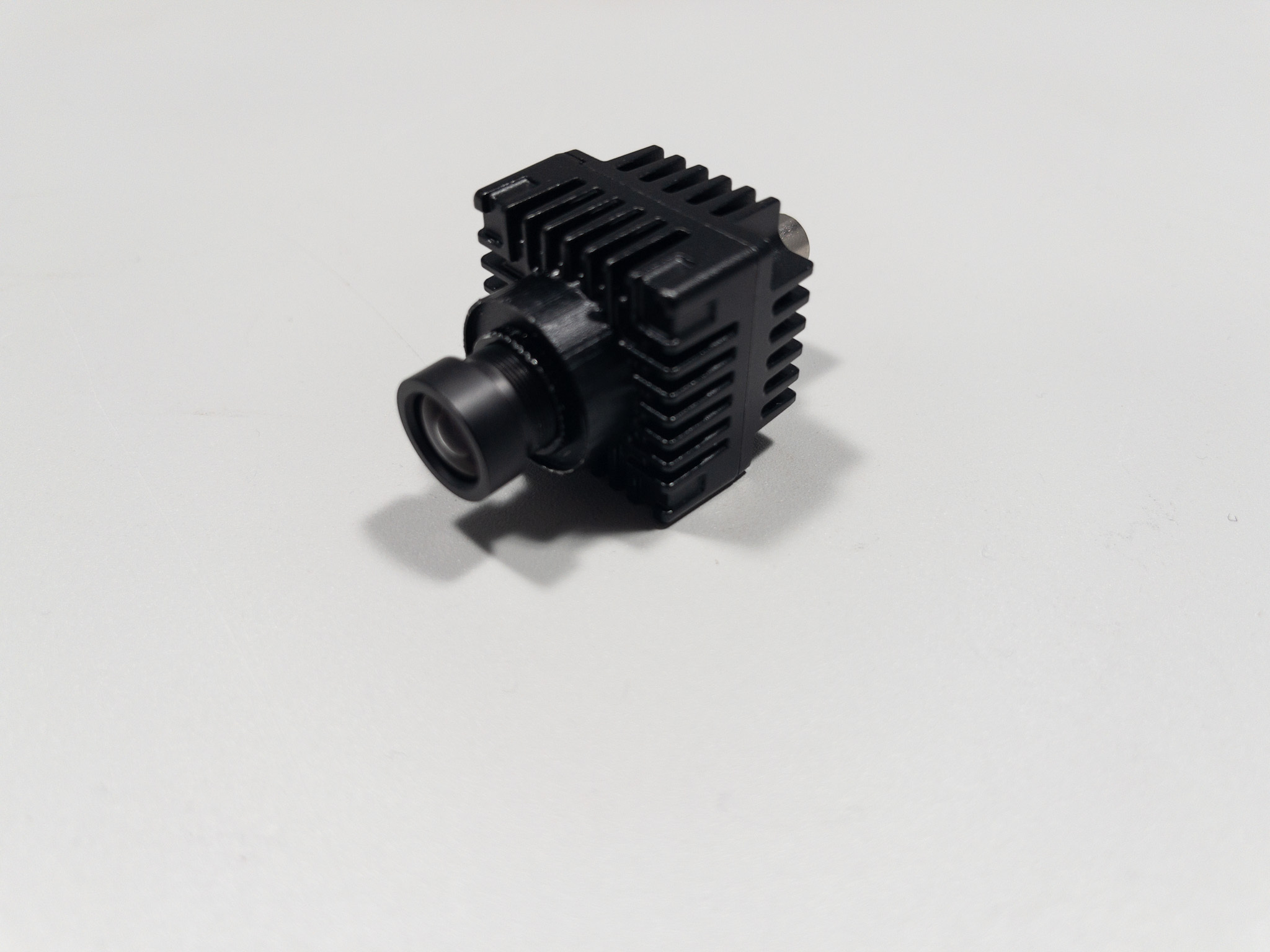

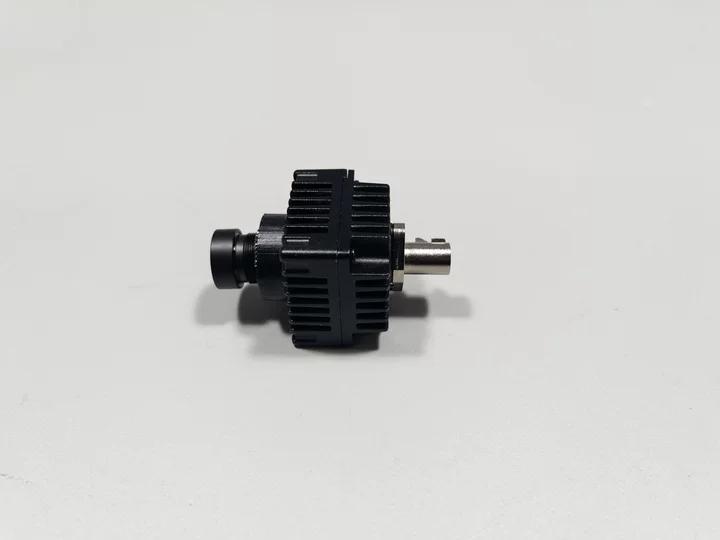

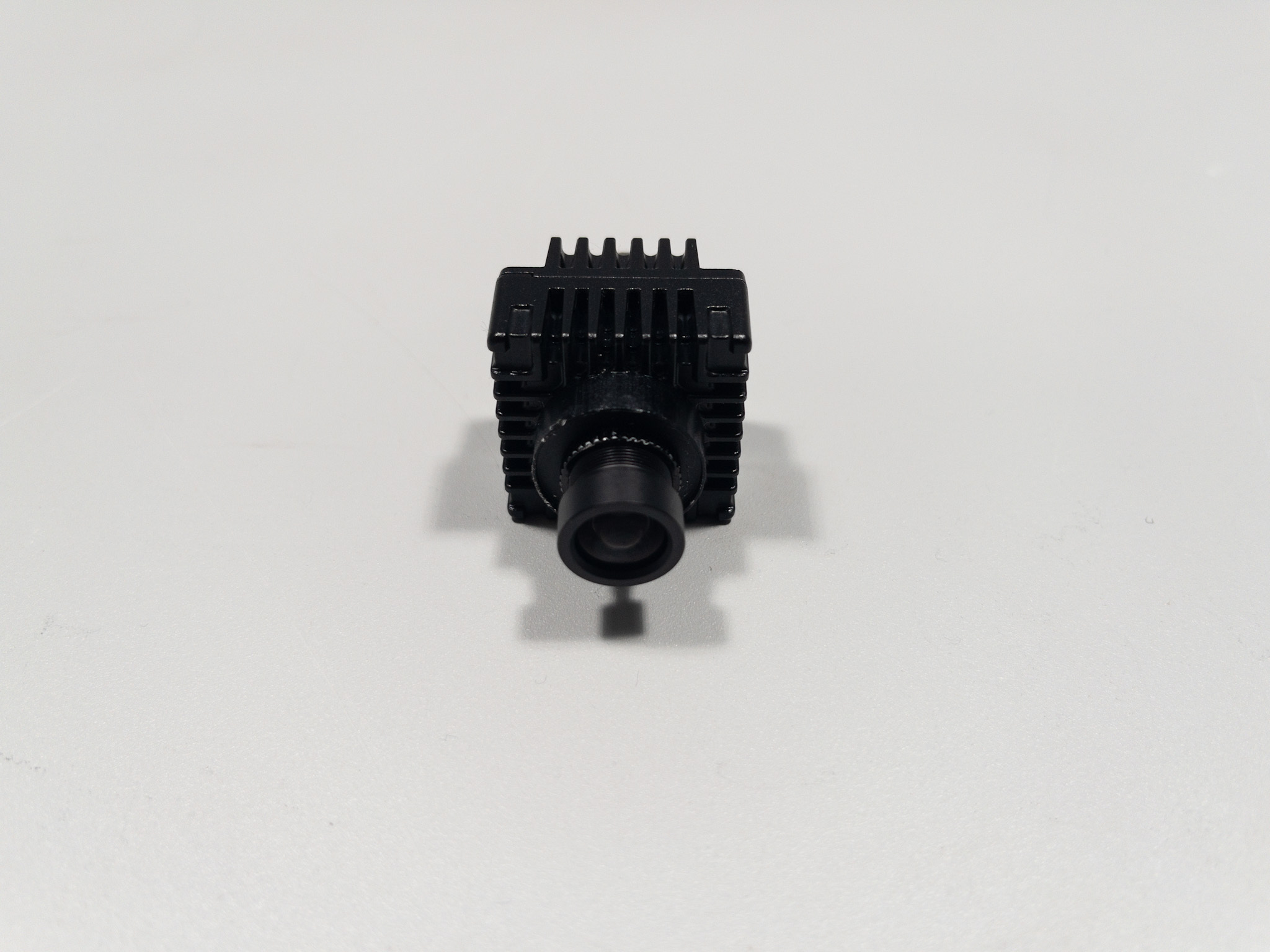

The GMSL2 5M Camera with M12 FOV100 Lens (Model: SDC500-FOV100) is a compact automotive-grade GMSL2 FAKRA camera that combines an OmniVision OX08B40 automotive image sensor, a GW5300 image signal processor and a MAX96717 GMSL2 serializer with an integrated M12 FOV100 lens. It delivers 5-megapixel (2560 × 1920) video at 30 fps with 140 dB dynamic range, using an automotive-grade FAKRA connection and coaxial LVDS (GMSL2) transmission — no debayering load on the host.

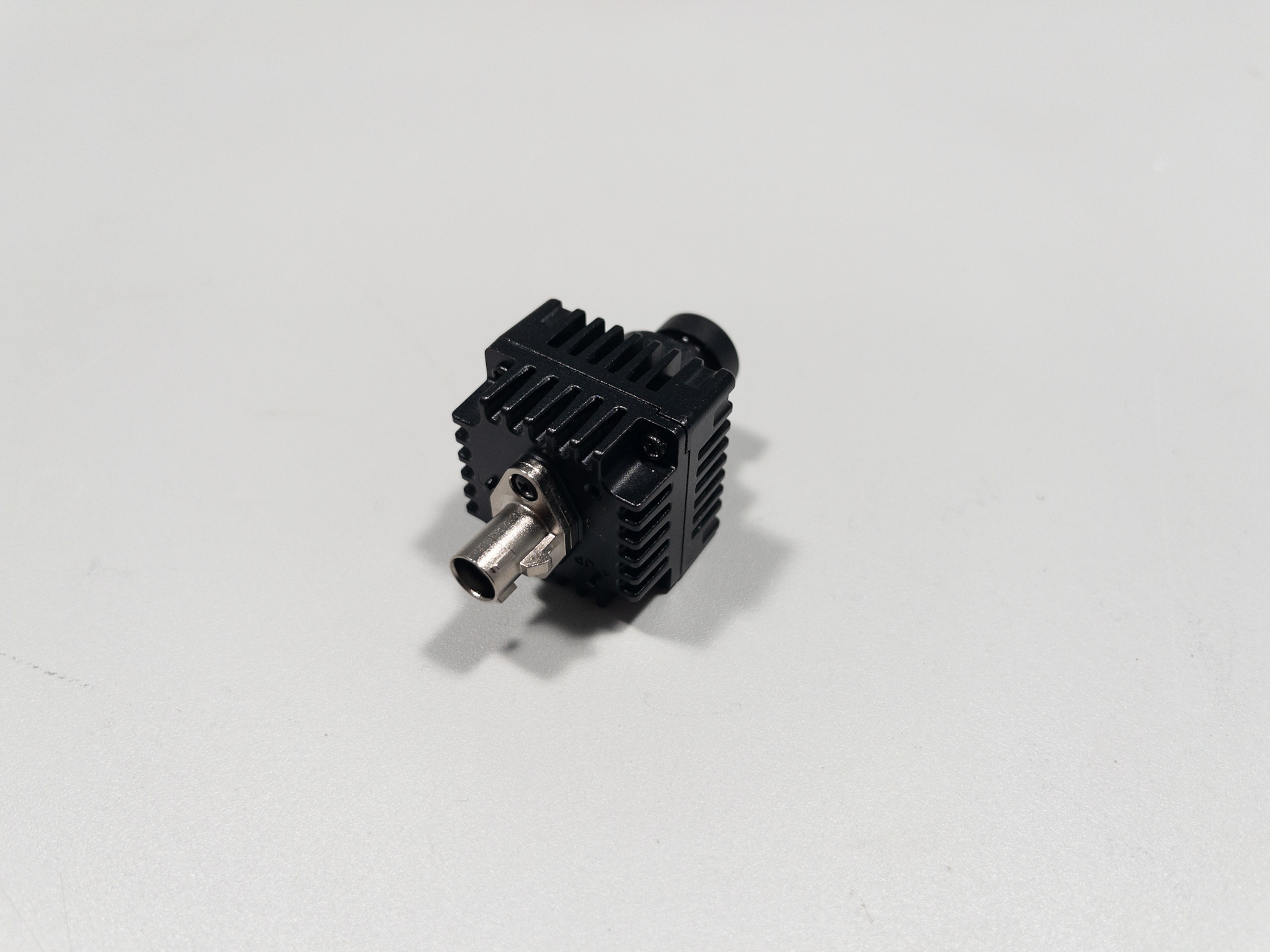

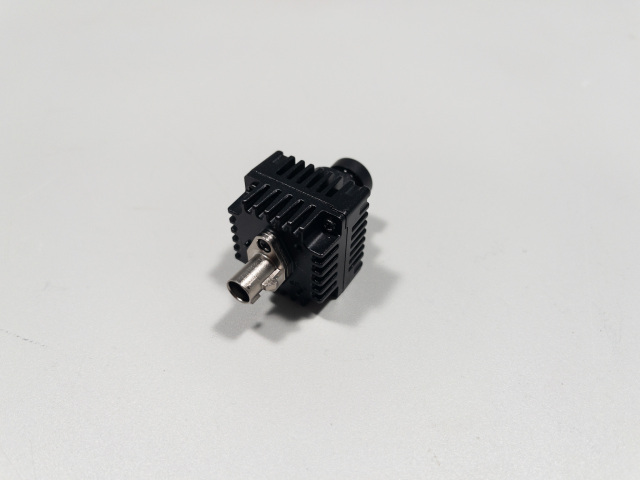

Video is output as processed YUV (UYVY) through a standard FAKRA male Type-Z connector, so the camera integrates directly with GMSL2-capable hosts such as the RobooPi P53NVNA AI computing box and ECFG-series frame grabbers over a single coaxial cable. It is designed for autonomous driving development, robotics, industrial vision inspection, and other machine vision applications.
2. Product Features
3. Specifications
| Product Model | SDC500-FOV100 |
| Lens | Integrated M12 FOV100 lens |
| Aperture (F/No) | F2.0 |
| Focal Length | 2.8 mm |
| Field of View (Diagonal) | 122° |
| Field of View (Horizontal) | 114° |
| Field of View (Vertical) | 75° |
| Distortion | −6.1% |
| Chief Ray Angle (CRA) | ≤ 17.1° |
| Focus Distance | 1.0 m / 1.5 m |
| Sensor Model | OmniVision OX08B40 (automotive image sensor) |
| Image Sensor Processor | GW5300 |
| Serializer | MAX96717 (GMSL2) |
| Number of Output Pixel | 2560 × 1920 (5 MP) |
| Dynamic Range | 140 dB |
| Signal to Noise Ratio (SNR) | 40.6 dB |
| Frame Rate | 30 fps |
| Stabilization Time | ≤ 800 ms |
| Power Supply Voltage Ratings | 12 V |
| Input Voltage Range | 6 V ~ 16 V |
| Current Consumption | ≤ 200 mA (12 V) |
| Output Formats | YUV (UYVY) |
| Connector | FAKRA male Type Z |
| Transmission Interface | Coaxial Cable LVDS (GMSL2) |
| Operating Temperature Range | −40 °C ~ +75 °C |
| Storage Temperature Range | −40 °C ~ +95 °C |
| Weight | 52 g ± 10% |
| Size (L/W/H, mm, excl. lens & connector) | 30.0 × 30.0 × 28.5 |
4. Compatibility
Compatible AI computing box: RobooPi P53NVNA (AI Computing Box based on NVIDIA Jetson Orin Nano)
Compatible GMSL FAKRA cable: GMSL Cable with FAKRA Connectors
Need interchangeable C-Mount optics? See the GMSL2 C-Mount Camera (SDC800GY-C) with optional C-Mount lenses.
5. FAQ
Q: What sensor and output format does the SDC500-FOV100 use?
A: An automotive-grade OmniVision OX08B40 image sensor with the GW5300 ISP and a MAX96717 GMSL2 serializer — video is output as processed YUV (UYVY), so no debayering runs on the host.
Q: What resolution and frame rate does it deliver?
A: 5 MP (2560 × 1920) at 30 fps, with 140 dB dynamic range and 40.6 dB SNR.
Q: What lens is integrated?
A: A fixed M12 FOV100 wide-angle lens — 2.8 mm focal length, F2.0 aperture, 122° / 114° / 75° (D/H/V) field of view, distortion −6.1%, and a 1.0 m / 1.5 m focus distance.
Q: How does the camera connect to a host?
A: Over a single coaxial FAKRA cable (GMSL2 link, MAX96717 serializer) — compatible with the RobooPi P53NVNA AI computing box and ECFG-series frame grabbers.
Q: What is the operating temperature range?
A: −40 °C to +75 °C (storage: −40 °C to +95 °C).
6. Contact Us to get a detailed product datasheet.
Feel free to contact us for a detailed specification sheet, mechanical drawings, or further questions.
