1. Overview

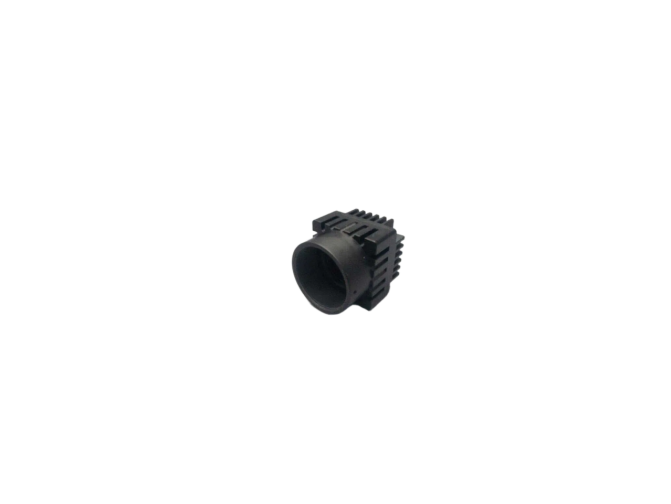

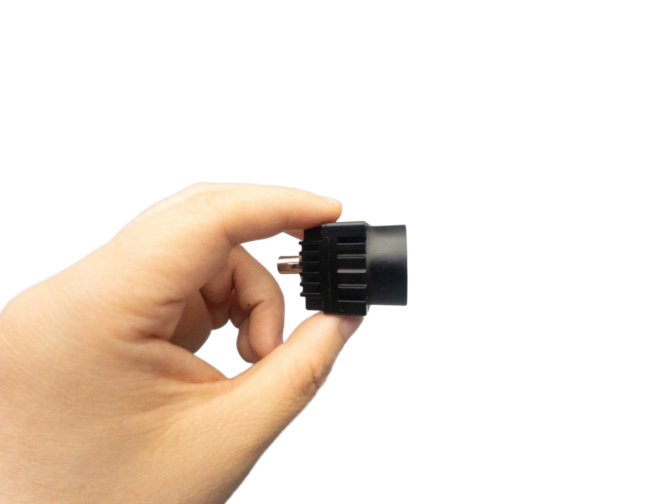

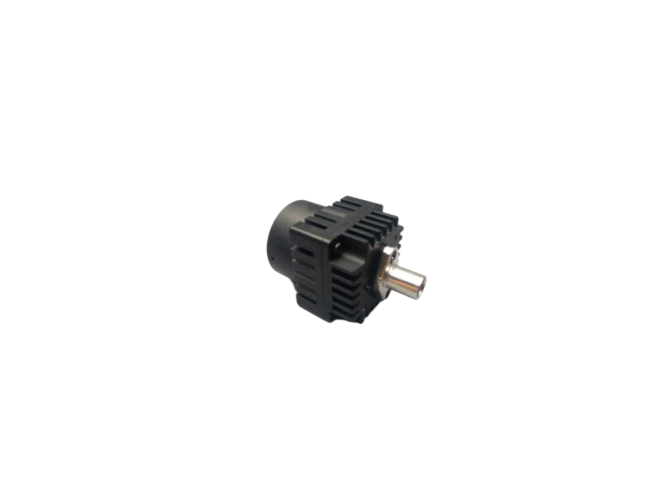

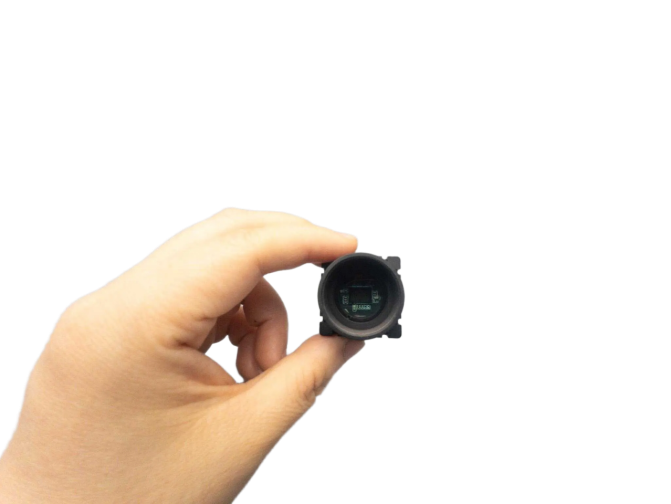

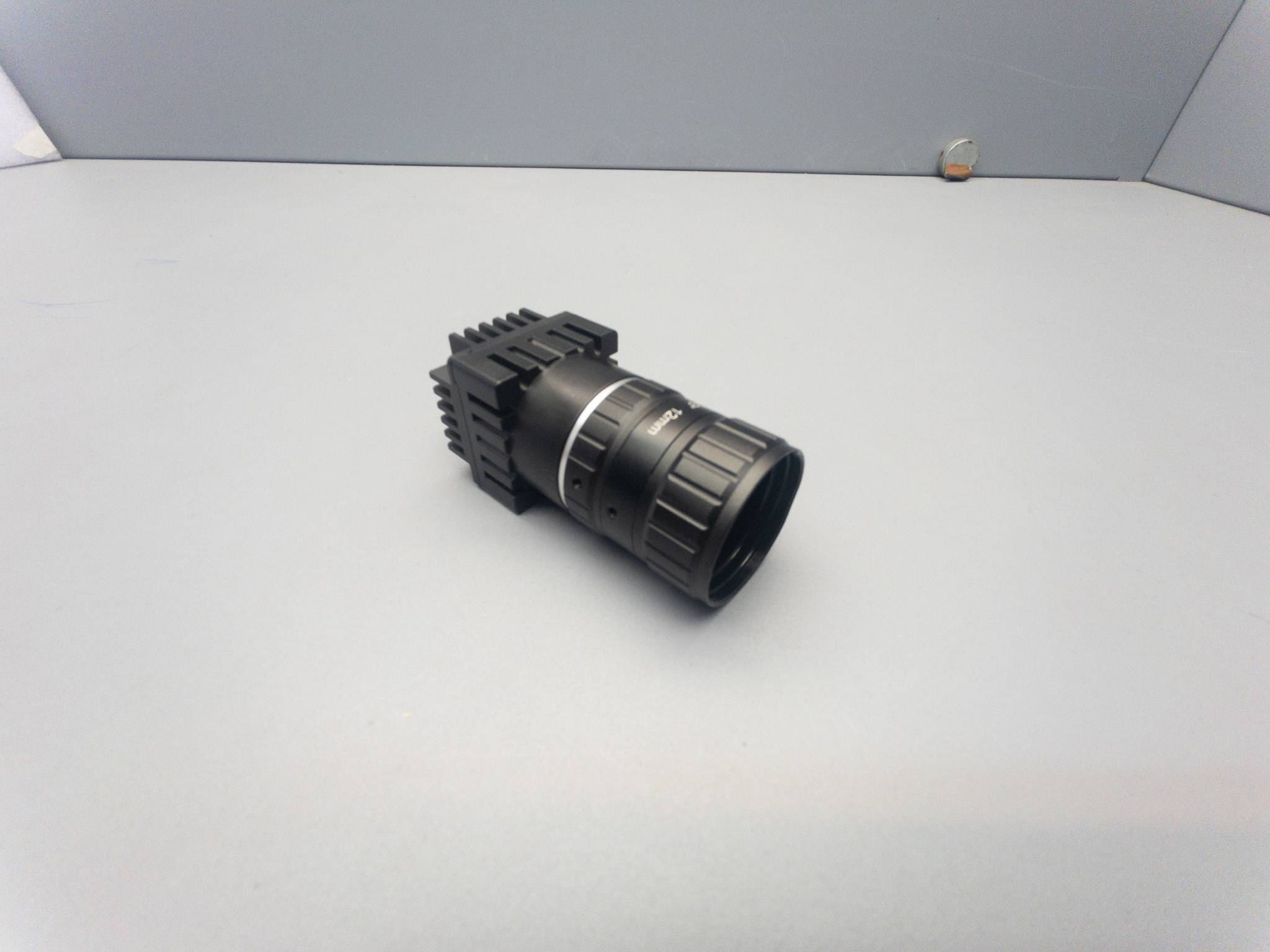

The GMSL2 Camera (Model: SDC800GY-C) is a GMSL2 camera with an automotive-grade FAKRA connector and coaxial LVDS transmission link, designed for ADAS, autonomous driving, industrial vision inspection, and robotics applications. It combines a SmartSens SC855SL sensor with the XC8162 image signal processor and a MAX9295 GMSL2 serializer, delivering switchable 4M/5M/8M video output with more than 100 dB dynamic range over a coaxial LVDS link.
Video is output as YUV (UYVY) through a standard FAKRA male Type-Z connector, so the camera integrates directly with GMSL2 frame grabbers such as the ECFG series and with GMSL2-capable domain controllers — no additional debayering is required on the host.
2. Key Features
3. Specifications
| Sensor Model | SC855SL |
| Image Sensor Processor | XC8162 |
| Serializer | MAX9295 |
| Number of Output Pixel | 4M: 2560 × 1440; 5M: 2560 × 1920; 8M: 3840 × 2160 |
| Dynamic Range | > 100 dB |
| Signal to Noise Ratio (SNR) | 39.12 dB |
| Frame Rate | 30 fps |
| Stabilization Time | ≤ 800 ms |
| Power Supply Voltage Ratings | 12V |
| Input Voltage Range | 8V ~ 16V |
| Current Consumption | ≤ 300 mA (12V) |
| Output Formats | YUV (UYVY) |
| Connector | FAKRA male Type Z |
| Transmission Interface | Coaxial Cable LVDS |
| Operating Temperature Range | -20 °C ~ +65 °C |
| Storage Temperature Range | -20 °C ~ +75 °C |
| Weight | / |
| Size (L/W/H, mm, excl. lens & connector) | 30.0 × 30.0 × 35.4 |
4. Diagram
5. Compatibility

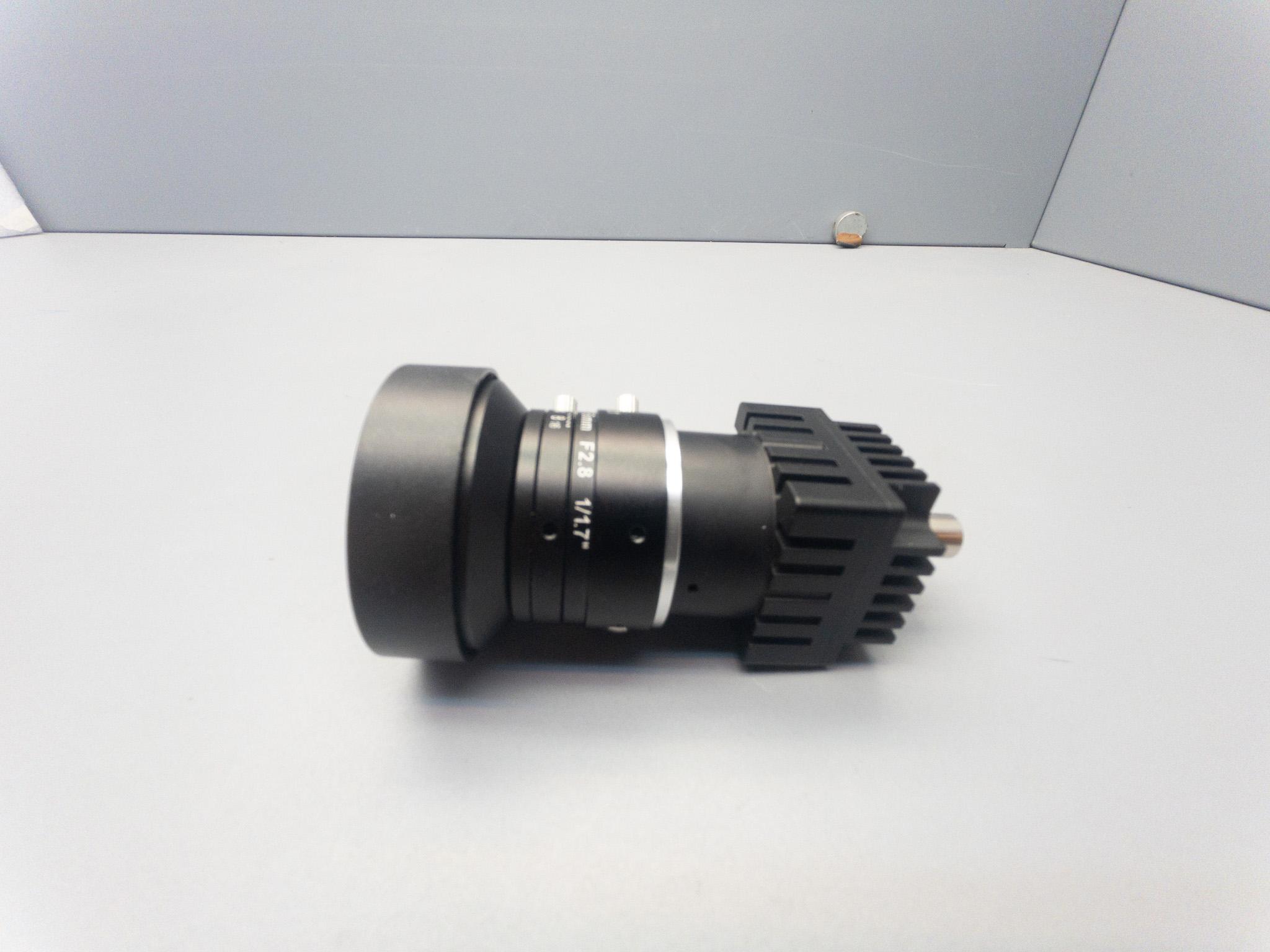

Optional C-mount lenses (sold separately):
Compatible AI computing box: RobooPi P53NVNA (AI Computing Box based on NVIDIA Jetson Orin Nano)
Compatible GMSL FAKRA cable: GMSL Cable with FAKRA Connectors
6. Real Shot Samples
Captured directly from the SDC800GY-C in 8M mode (3840 × 2160) — see the real image quality for yourself.

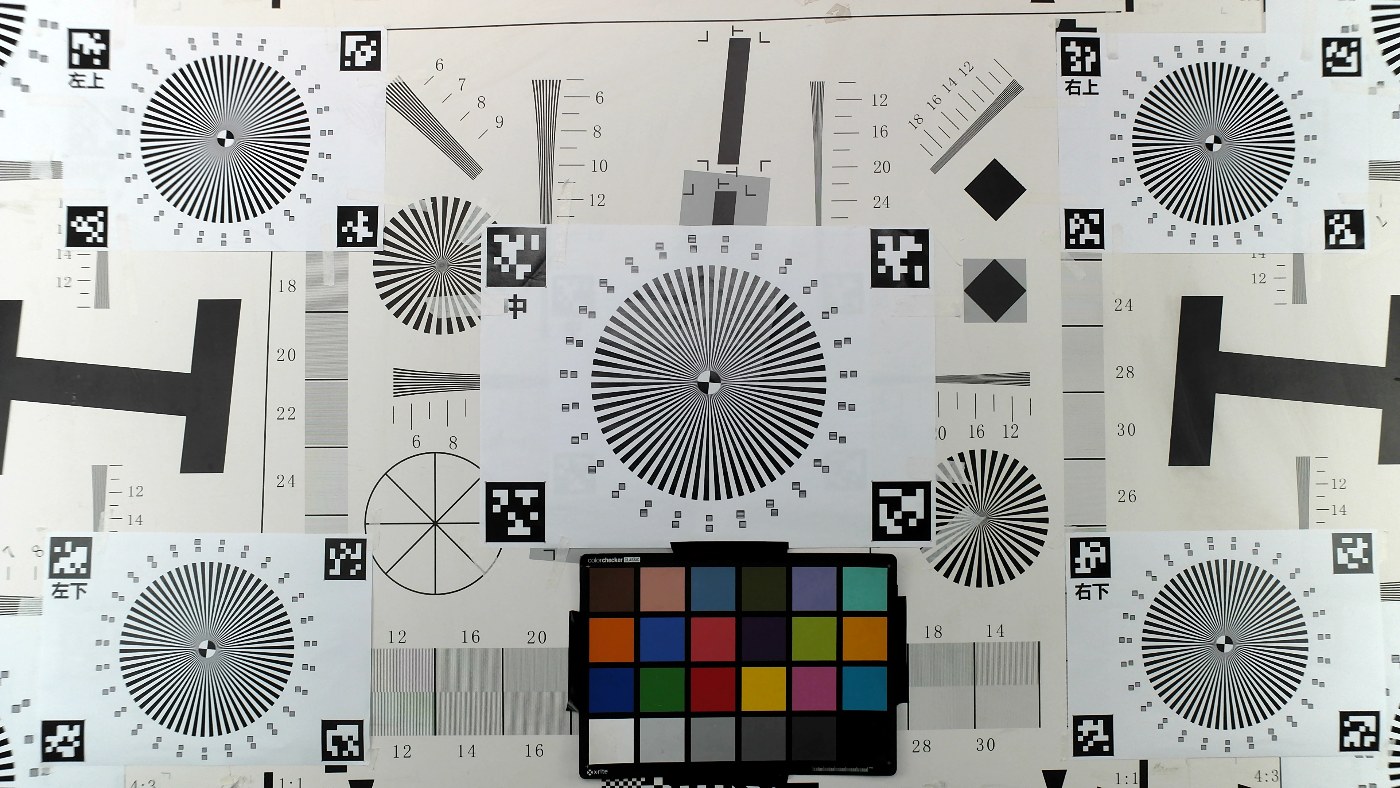

ISO 12233 resolution chart + 24-patch ColorChecker: fine radial lines resolved cleanly across the entire frame, with true-to-life color reproduction.

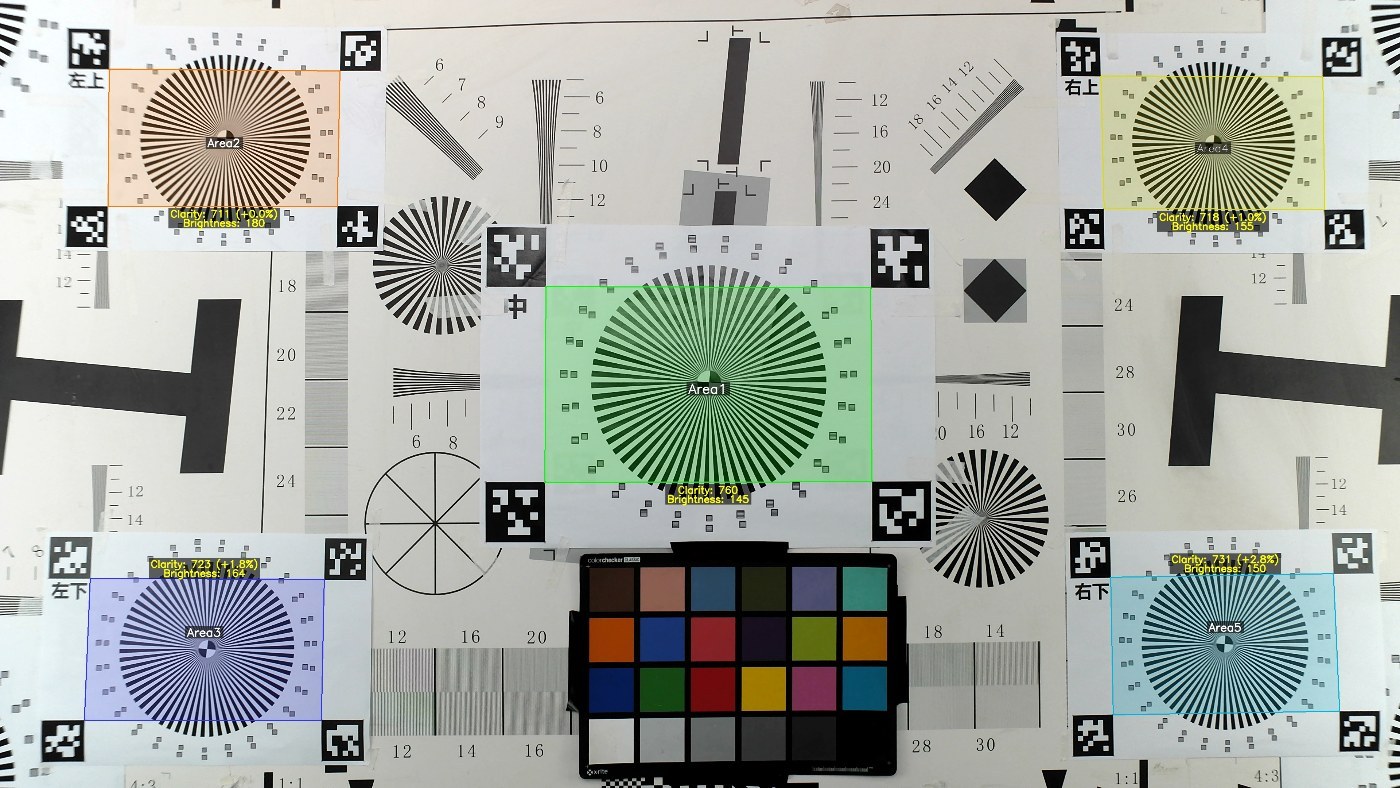

Center-to-corner consistency analysis: consistently sharp from center to edge, with no soft corners.
7. FAQ
Q: What sensor and output format does the SDC800GY-C use?
A: A SmartSens SC855SL sensor with the XC8162 ISP, outputting processed YUV (UYVY) over the GMSL2 link — no debayering load on the host.
Q: Which resolutions and frame rates are supported?
A: Switchable 4M (2560 × 1440), 5M (2560 × 1920) and 8M (3840 × 2160), all at 30 fps.
Q: How does the camera connect to a host?
A: Over a single coaxial FAKRA cable (GMSL2 link, MAX9295 serializer) — compatible with ECFG-series frame grabbers and GMSL2 domain controllers.
Q: What is the operating temperature range?
A: −20 °C to +65 °C (storage: −20 °C to +75 °C).
Feel free to contact us for a detailed specification sheet, mechanical drawings, or further questions.
