ECIPC8220

1. Overview

The ECIPC8220 is an IP camera designed for real-time monitoring and data recording at key urban locations. Built around an SOI JX-8220 sensor, it delivers 8.3MP 4K imaging for precise traffic-flow and vehicle monitoring, while on-board edge computing processes video locally to reduce bandwidth and storage costs.

Urban traffic deployments need cameras that stay clear at night, survive extreme weather, and install quickly at scale. The ECIPC8220 answers with PoE plug-and-play installation, IP67 protection, a -40°C to +60°C operating range, and WDR / EIS image processing — all in a compact 192 × 77 mm, approx. 0.7 kg housing.

Watch Video

2. Key Features

• 8.3MP 4K Imaging: The SOI JX-8220 sensor captures ultra-high-resolution footage for precise vehicle identification and license-plate recognition.
• Low-Light Performance: The SOI JX-8220 provides excellent QE performance at the NIR (near-infrared) range, translating to improved night vision at both 850nm and 940nm wavelengths.
• Wide Operating Temperature Range: Operates reliably from -40°C to +60°C — from freezing winters to scorching summers.
• Waterproof & Dustproof (IP67): Certified protection against dust ingress and water jets, withstanding heavy rain, snow, fog, and intense sun.
• Electronic Image Stabilization (EIS): Significantly reduces motion blur in dynamic traffic environments for stable, clear footage.
• Wide Dynamic Range (WDR): Adjusts exposure for clear, detailed images in high-contrast lighting conditions.
• PoE + Edge Computing: Single-cable PoE installation with low power consumption and on-board video processing that lowers installation and operating costs.

3. Image Quality in Action

8.3MP vs standard 2MP: ultra-high resolution covers a wide scene without sacrificing clarity — license plates stay legible, and digital zoom remains useful for detail inspection.

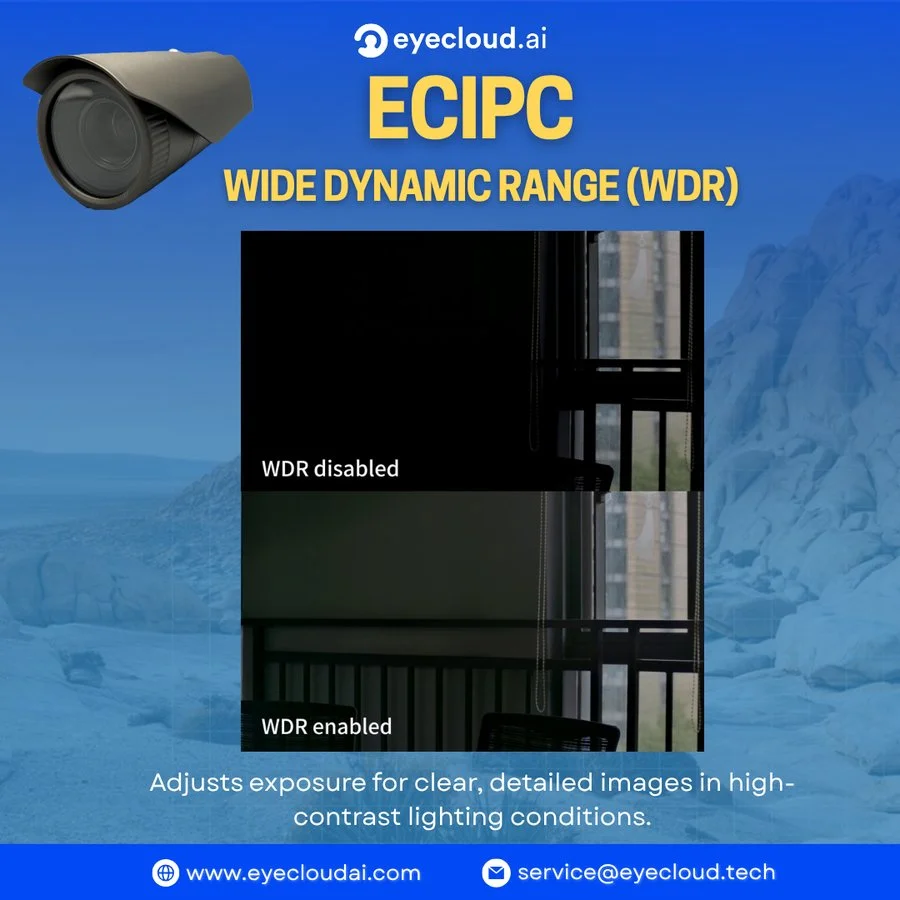

WDR — balanced exposure in challenging light: WDR intelligently adjusts exposure where conventional cameras produce washed-out or overly dark areas, maintaining detail across direct sunlight and deep shadows, tunnel entrances and exits, backlit subjects, and glare from wet roads or vehicle windows.

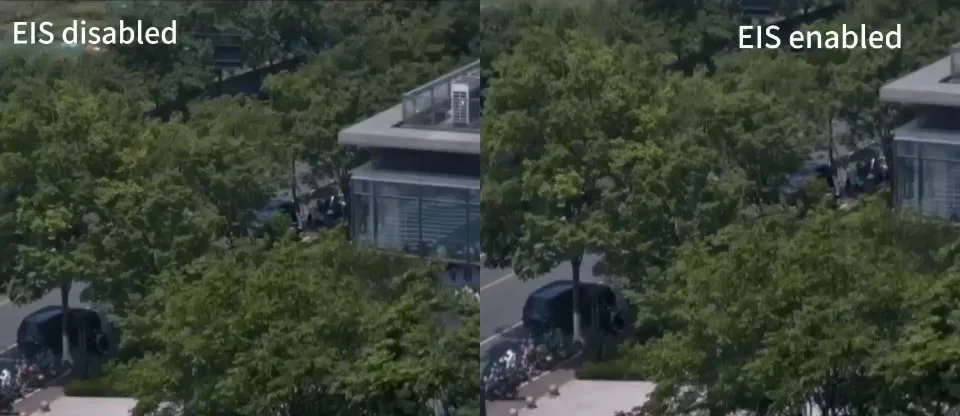

EIS — stable footage in motion: electronic image stabilization eliminates vibration and shaking from wind or passing vehicles, keeping license plates and vehicle details readable and ensuring usable footage for traffic analysis — even when monitoring fast-moving vehicles (up to 120 km/h).

4. Built for Harsh Outdoor Environments

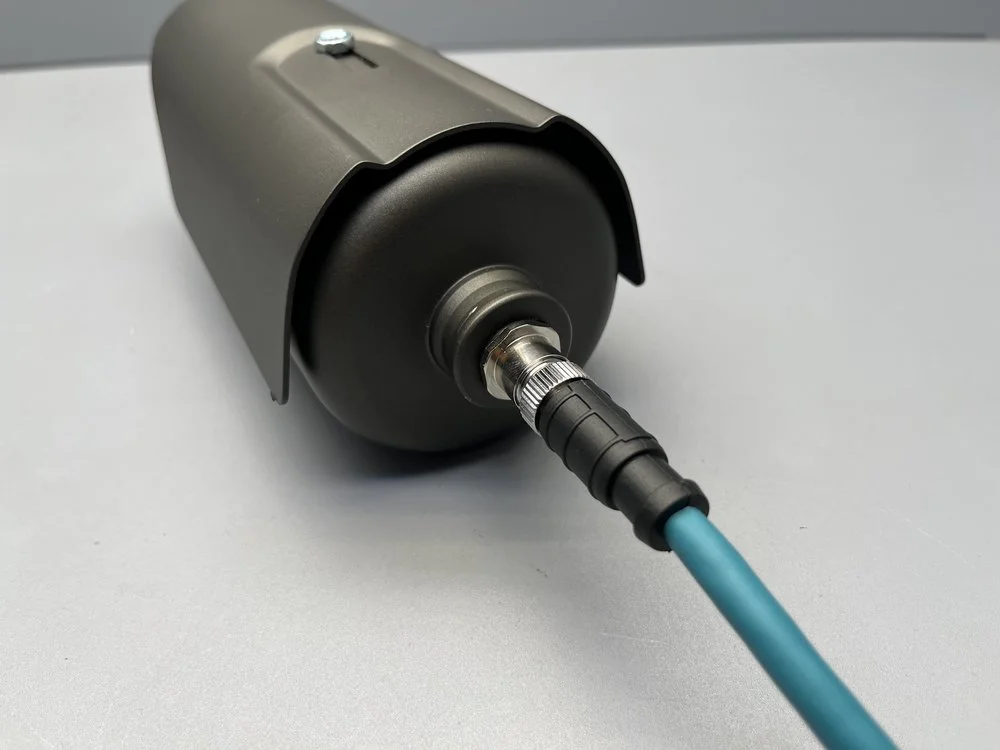

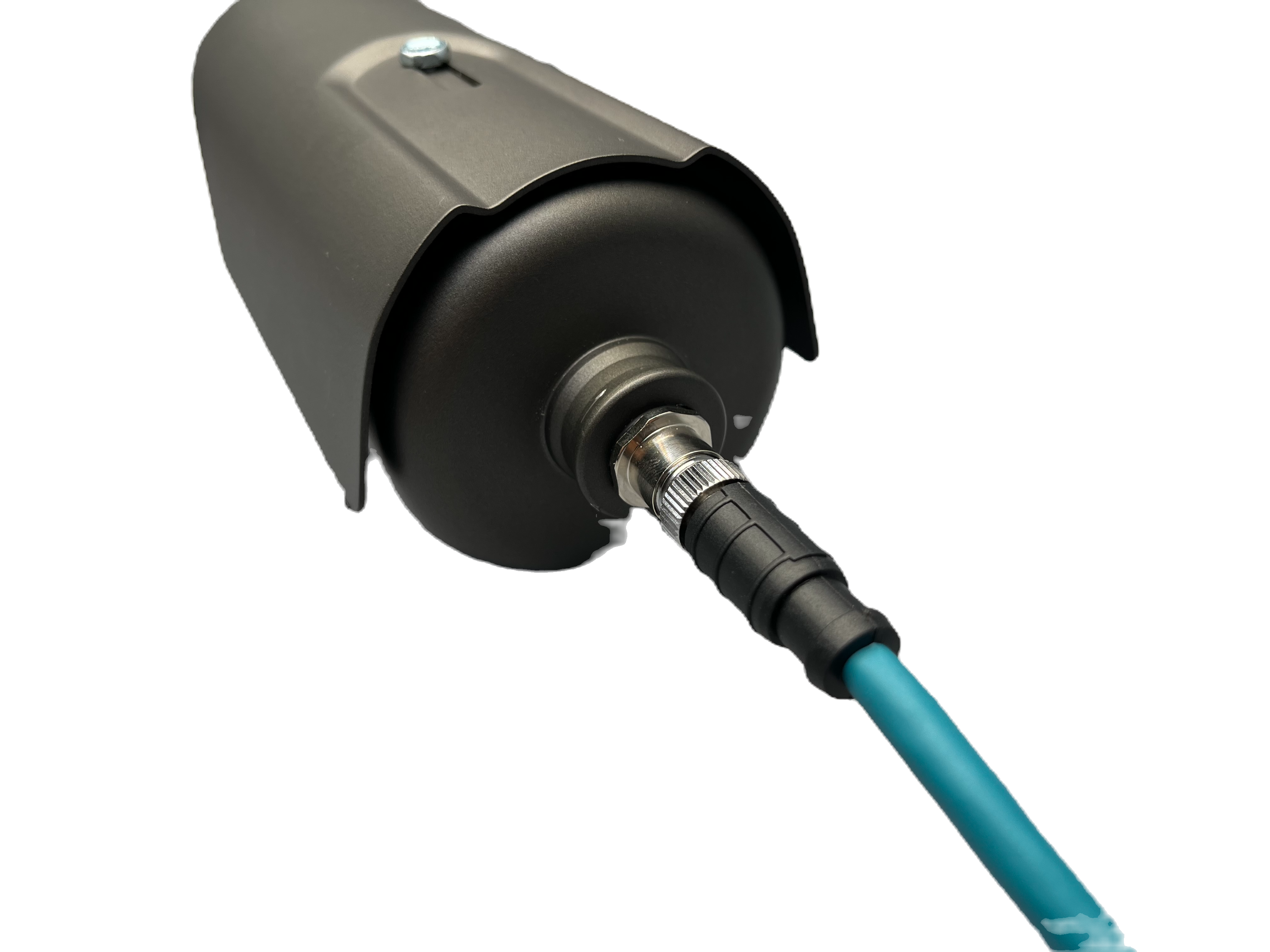

The smaller (192 × 77 mm), lighter (approx. 0.7 kg) enclosure is easy to mount on poles and brackets, and the IP67-compliant housing keeps the camera running through heavy rain, snow and ice, fog, intense sun, and high winds. A waterproof sealed network connector with RJ45 completes the outdoor-ready design.

5. Specifications

6. Applications

• Urban Traffic Monitoring: ideal for intersections, highways, and city roads to monitor vehicle flow, traffic conditions, and road safety.
• Security Surveillance: deploy in public spaces or secured areas requiring real-time video surveillance for enhanced security.
• Intelligent Traffic Systems: integrates with traffic-management systems to support smart-city initiatives for enhanced control and optimization.

7. FAQ

Q: What image sensor and resolution does the ECIPC8220 use?
A: An SOI JX-8220 sensor delivering 8.3MP 4K video at 30 fps, with excellent QE performance at the NIR range (850nm / 940nm) for improved night vision.

Q: Can I change the lens?
A: Yes. The camera uses a standard C-Mount, so optional FOV35 and FOV60 C-Mount lenses (sold separately) can be fitted for different fields of view.

Q: How is the camera powered and installed?
A: Via PoE — a single network cable carries both power and data for plug-and-play installation, keeping large-scale deployments fast and cost-effective.

Q: Is it suitable for outdoor use in extreme climates?
A: Yes. The housing is IP67 waterproof and dustproof and operates from -40°C to +60°C.

For a detailed specification sheet, mechanical drawings, or volume pricing, feel free to contact us.
