Product Overview

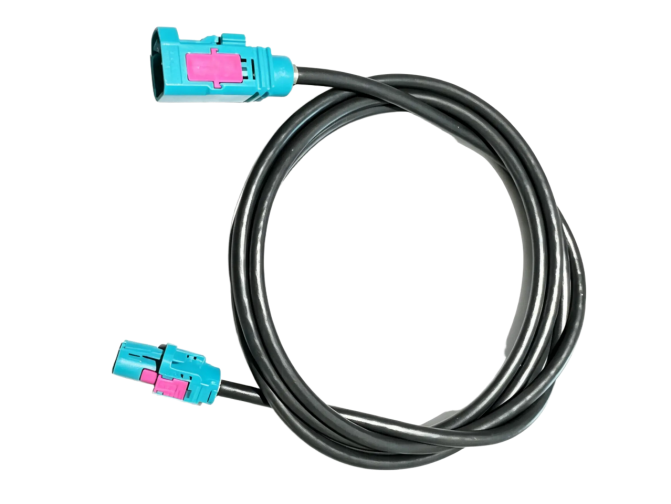

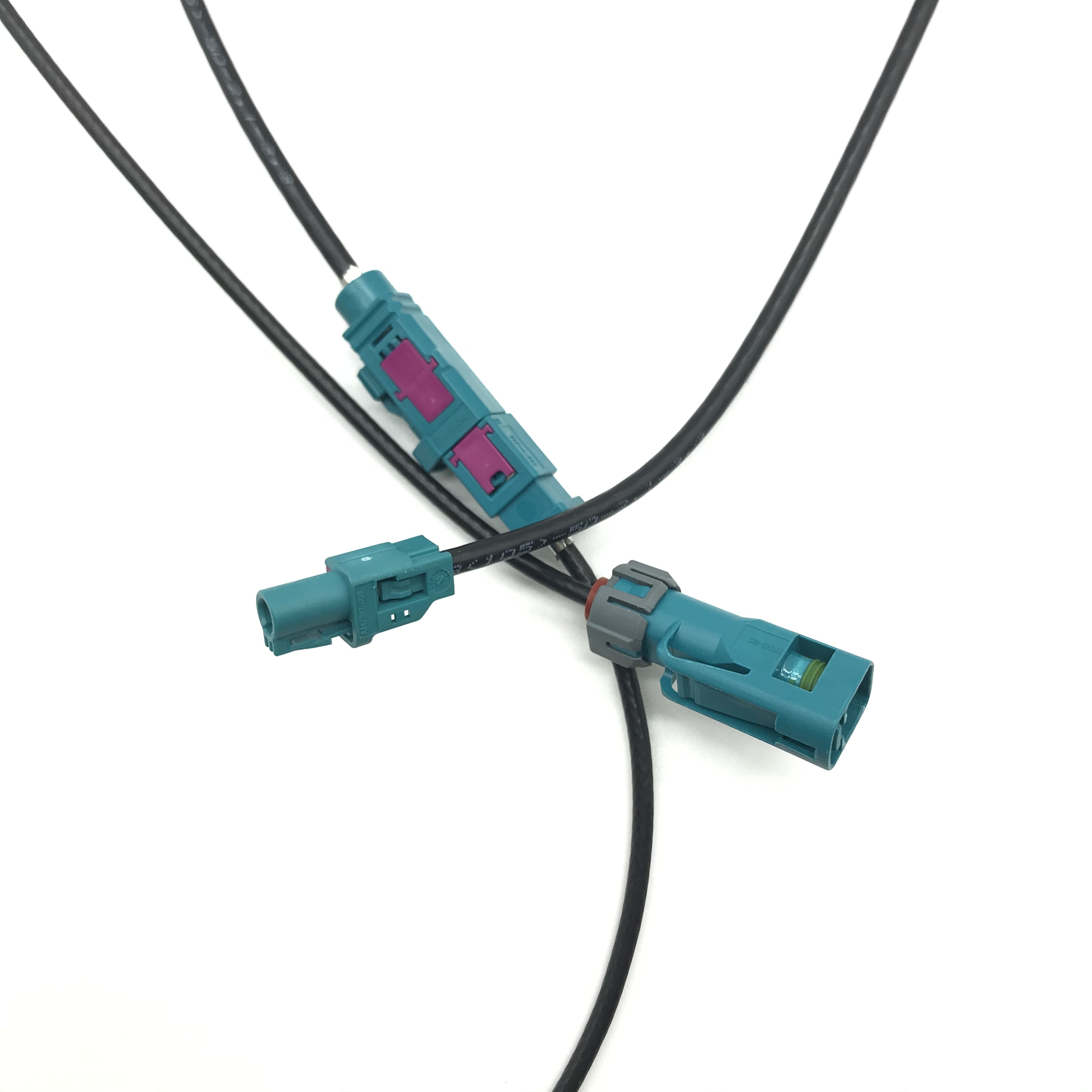

Our FAKRA Cable Assemblies are high-quality coaxial cable solutions terminated with FAKRA connectors, specifically designed for automotive and industrial RF signal transmission. Compliant with international standards such as USCAR, LV 214, and ISO 20860, these cables integrate advanced design features to ensure secure connections, minimal signal loss, and resistance to harsh operating environments. Whether for in-vehicle infotainment, ADAS (Advanced Driver Assistance Systems), GPS navigation, or antenna connectivity, our FAKRA cables provide a reliable solution for today's data-driven vehicles.
Core Features & Benefits
- Superior High-Frequency Performance: Supports frequency ranges from DC up to 6 GHz (depending on cable and connector combination) and data rates of up to 8 Gbps, ensuring seamless transmission of high-speed signals for GPS, 5G, V2X (Vehicle-to-Everything), and high-definition camera systems. The micro coaxial cable (MCA) design delivers excellent high-frequency performance, making it ideal for autonomous driving and wireless communication applications.
- Exceptional Shielding Capability: Constructed with a multi-layer structure—including a central conductor, insulation layer, aluminum foil, braided shielding layer, and outer sheath—our FAKRA cables effectively block external electromagnetic interference (EMI) and prevent internal signal leakage. This ensures signal stability and accuracy even in the complex electromagnetic environment of modern vehicles.
- Secure & Error-Proof Connection: Equipped with a unique color-coded, keyed, and dual-locking (primary and secondary) system, FAKRA connectors prevent misconnection and ensure a secure fit. The latching mechanism provides audible and tactile feedback when properly mated, withstanding vehicle vibrations and impacts to avoid loose connections during operation.
- Automotive-Grade Durability: Built to withstand extreme temperatures ranging from -40°C to +105°C, our FAKRA cables offer excellent weather resistance, anti-aging properties, and shock resistance. They are engineered to endure the harsh conditions of automotive use, including temperature fluctuations, humidity, and mechanical stress, ensuring long-term reliable performance.
- Miniaturized & Lightweight Design: With the increasing integration of automotive electronic devices, our FAKRA cables feature a compact, lightweight structure that saves installation space and reduces vehicle weight. The flexible design allows for easy routing in tight spaces, optimizing in-vehicle wiring layouts.
- Global Standard Compatibility: Adhering to the global FAKRA standard, our cables feature 13 mechanical and color codings (plus one neutral coding) for easy identification and compatibility across different automotive electronic devices. This standardization simplifies installation, maintenance, and replacement, reducing operational costs.
Available Lengths
We offer three standard cable lengths to fit different installation layouts: 1 meter / 5 meters / 10 meters. Custom lengths are available on request.
Technical Specifications
| Specification |
Details |
| Impedance |
50 Ohm (60 Ohm and 75 Ohm available on request) |
| Frequency Range |
DC to 6 GHz (cable-dependent) |
| Data Rate |
Up to 8 Gbps |
| Operating Temperature |
-40°C to +105°C |
| Connector Type |
FAKRA (color-coded, keyed, latching mechanism) |
| Connector Configurations |
Straight and Right-Angle |
| Cable Types Supported |
RG-58, RG-174, RG-316, and automotive-grade coaxial cables |
| Voltage Rating |
335 Volts RMS Continuous |
| Mating Cycles |
Up to 100 cycles |
| Testing Protocol |
Hi-pot and continuity tested for quality assurance |
Key Applications
- Automotive Infotainment Systems: Connect satellite radio, digital audio, and TV signals, ensuring clear, stable playback for an enhanced in-vehicle experience.
- ADAS & Camera Systems: Link rear-view, front-view, and surround-view cameras to the head unit or ADAS computer, supporting safe driving and autonomous driving functions.
- GPS & Telematics: Transmit GNSS signals with minimal loss, ensuring accurate real-time positioning and reliable telematics data transmission.
- Antenna Connectivity: Reliably connect AM/FM, LTE/5G, and V2X antennas to onboard systems, enabling seamless wireless communication.
- Sensor Integration: Used in tire pressure monitoring, radar, and V2X communication systems, ensuring accurate data transmission for vehicle safety.
- Industrial Transportation: Suitable for navigation and communication systems in industrial vehicles, meeting the same rigorous durability and performance standards as automotive applications.
Custom Solutions
We understand that every application has unique requirements. Our engineering team offers custom FAKRA Cable Assemblies tailored to your specific needs, including custom cable lengths, connector orientations (straight or right-angle), shielding options, and IP67-sealed versions (available on request). We also provide value-added services such as heat shrink booting, labeling, and RF testing to document electrical performance, ensuring your cable assembly perfectly matches your project requirements.
Quality Assurance
Quality is at the core of our products. All FAKRA Cable Assemblies undergo strict quality control processes, including hi-pot and continuity testing, to ensure reliable performance and compliance with international standards. We are committed to delivering products that meet the toughest automotive and industrial requirements, providing long-term durability and peace of mind for our customers.
